Pos. Nom / Référence Prix Stock Info Qté 1 Axleclamp OC right cpl. with t 48601933S1 359,04€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
2 Axleclamp OC left cpl. with tu 48601932S1 359,04€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
3 fork outer tube 49.13x577 dt54 48602096 294,40€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 3.6-470 for S809900029S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 3.8-470 for S809900030S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 4.0-470 for S809900031S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 4.2-470 for S809900032S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 4.4-470 for S809900033S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 4.6-470 for S809900034S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 4.8-470 for S809900035S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 5.0-470 for S809900036S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
4 main spring (43.8) 5.2-470 for S809900037S0000 110,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
5 Washer 35x43x2,5 plastic 48600456 4,08€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
5 Preload bush 35x43x3,5 48600457 4,08€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
5 Washer 35x43x1,5 plastic 48600458 4,08€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
6 Screw cap M51x1,5 rebound cpl. 48601960S 65,88€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
7 Screw cap M51x1,5 compression 48601961S 65,88€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
8 Adjuster kit screw cap RP10021 12,50€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
9 O-ring 46x2 NBR70 siliconized 48600048 1,75€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
10 Guide bushing set fork 48mm R14047T 31,95€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
11 Seal kit 48mm SKF black RP10048T 70,35€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
12 Tube with screwsleeve and hole S962300000S0000 126,84€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
13 Tube with screwsleeve S962300001S0000 126,84€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
14 Guide bushing 12x14x10 48600430 6,90€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
15 Tap compression cpl. 48601843S3 31,26€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
16 Nut M6x0,5 h6,5 WAF10 rebound 40540486 4,08€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
17 Midvalve piston assembly d23 48602002S 21,60€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
18 Spring (11,4) 0,4-8 valve 48600382 4,08€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
19 Tap 6x46 rebound 48600576 11,52€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
20 O-ring 6x1,2 NBR70 48600299 1,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21 Spring (13,9) 37-32 rebound cp 48600578S 21,60€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
22 Spring retainer 27,08x43x45 48601298 19,14€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
23 Needle 4,5x43,6 cpl. 48600277S 10,00€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
24 Needle 4,5x38,2 cpl. 48601558S 9,96€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
25 Piston rod 12x554 48600568 86,34€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
26 Adjustment tube 6x524,6 48602036 21,60€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
27 Stop 12,4x31,9x200,3 cpl. S228700003S0100 38,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
28 Nut valve M6x0,5 h6,5 WAF17 48600163 4,10€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
30 Piston 6x27,3x9 compression cp 48601934S 21,60€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
31 Screw cap M29,3x1 OC split cpl 48601553S 21,60€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
32 O-ring 11x2,5 NBR70 PTFE yello 04500003 1,20€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
33 Shim 27,5x33x0,3 48601702 2,35€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
34 HH collar screw M8x25 0025080256 3,00€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
35 Screw cap M29,3x1 48601980S 21,60€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
36 Fork protection ring 59,8mm S639200001000FA 8,50€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
37 Stroke indicator 48mm red 48602007 6,90€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
38 Sticker set Xplor OC 238x182.5 52000238SET 25,74€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
98 Fuchs grease IPR (250g) T14034 34,70€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
99 Fork Fluid Viscosity 4.0 5L 48601166S1 110,58€ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

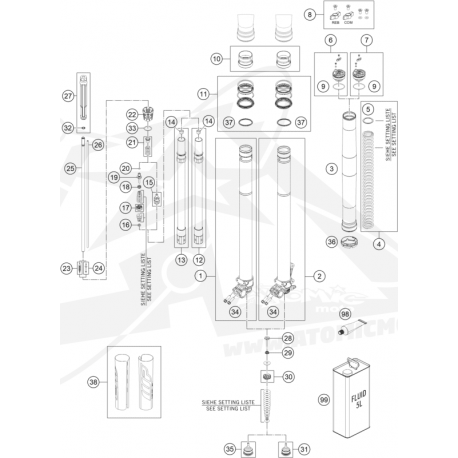

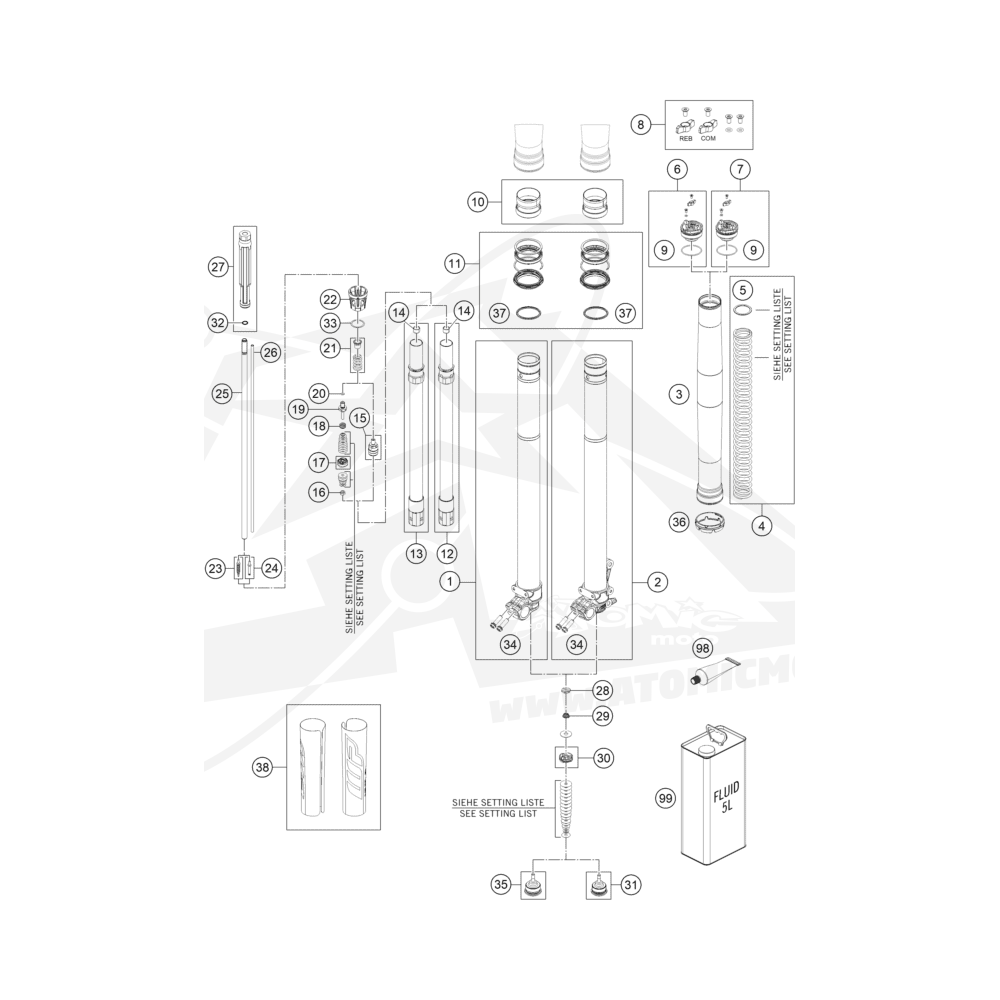

Description La vidange des fourche avant des GASGAS 500 EC-F 4T 2024 va souvent de paire avec le changement des joints spys et des chaches poussières . Le démontage complet de la fourche WP des GASGAS 500 EC-F 4T 2024 permet parfois de constater un defaut ou une usure des baques de frictions. Leur changement redonne un couissage optimal a votre fourche avant et un confort retrouvé. Les tubes inférieurs chromés de la fourche avant peuvent être endommagés par des chocs malgré les protections de fourche . Selon la profondeur des impacts, leur changement peux être inévitable . Vous les retrouverez au détails sur cette vue pour les GASGAS 500 EC-F 4T 2024. La visserie, les plongeurs de foourches, les cartouches internes et les tiges se détaillent également .
